| MODEL |
|
LPV20W |
LPV35W |
LPV60W |
LPV100W |
LPV150W |
| OUTPUT |
DC VOLTAGE |
12V~24V
|
12V~24V
|
12V~24V
|
12V~24V
|
12V~24V |
| RATED CURRENT |
1.67A~0.84A |
3A~1.5A |
5A~2.5A |
8.5A~4.2A |
10A~6.3A |
| CURRENT RANGE |
0~1.67A |
0~3A |
0~ 5A |
0~8.5A |
0~ 10A |
| RATED POWER |
20W |
36W |
60W |
102W |
120W |
RIPPLE&NOISE
(max.) Note.2 |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
200mVp-p |
| VOLTAGE TOLERANCE Note.3 |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
| LINE REGULATION |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
| LOAD REGULATION |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
| SETUP,RISE TIME Note.6 |
500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load |
500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load |
500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V) |
2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC |
LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC;
LPVL-150: 1500ms, 50ms / 115VAC |
| HOLD UP TIME(Typ.) |
50ms/230VAC 16ms/115VAC at full load |
50ms/230VAC 16ms/115VAC at full load |
50ms/230VAC
16ms/115VAC at full load |
50ms/230VAC
14ms/115VAC at full load |
LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load |
| INPUT |
VOLTAGE RANGE Note.4 |
90~264VAC 127~370VDC |
90~264VAC 127~370VDC |
90 ~ 264VAC 127 ~ 370VDC |
90 ~ 264VAC 127 ~ 370VDC |
LPV-150: 180 ~ 305VAC 254 ~ 431VDC;
LPVL-150: 90~132VAC |
| FREQUENCY RANGE |
47~ 63Hz |
47 ~ 63Hz |
47 ~ 63Hz |
47 ~ 63Hz |
47 ~ 63Hz |
| EFFICIENCY(Typ.) |
81% |
84% |
83% |
85% |
87% |
| AC CURRENT(Typ.) |
0.55A/115VAC 0.35A/230VAC |
1.1A/230VAC 0.7A/115VAC |
1.2A/115VAC
1A/230VAC |
2.2A/115VAC
1.2A/230VAC |
LPV-150: 1.7A/230VAC 1.5A/277VAC;
LPVL-150: 3.0A/115VAC |
| INRUSH CURRENT(Typ.) |
COLD START 70A(twidth=215 μs measured at 50% Ipeak) at 230VAC |
COLD START 55A(twidth=510 μs measured at 50% Ipeak) at 230VAC |
COLD START 60A(twidth=525 μs measured at 50% Ipeak) at 230VAC |
COLD START 75A(twidth=700 μs measured at 50% Ipeak) at 230VAC |
COLD START 60A(twidth=900 μs measured at 50% Ipeak) at 230VAC
COLD START 75A(twidth=900 μs measured at 50% Ipeak) at 115VAC |
| MAX. No. of PSUs on 16ACIRCUIT BREAKER |
8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC |
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC |
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC |
| LEAKAGE CURRENT |
0.25mA / 240VAC |
0.25mA / 240VAC |
0.25mA / 240VAC |
0.25mA / 240VAC |
LPV-150: 0.25mA / 240VAC
LPVL-150:0.25mA / 120VAC |
| PROTECTION |
OVER LOAD |
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE |
13.8~16V
Protection type : Shut off o/p voltage, clamping by zener diode |
13.8~16.2V
Protection type : Shut down o/p voltage, re-power on to recover |
13.8~16.2V
Protection type : Shut down o/p voltage, re-power on to recover |
13.8~16.2V
Protection type : Shut down o/p voltage, re-power on to recover |
13.5 ~ 18V
Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE |
|
|
|
|
Shut down o/p voltage, recovers automatically after temperature goes down |
| ENVIPONMENT |
WORKING TEMP. |

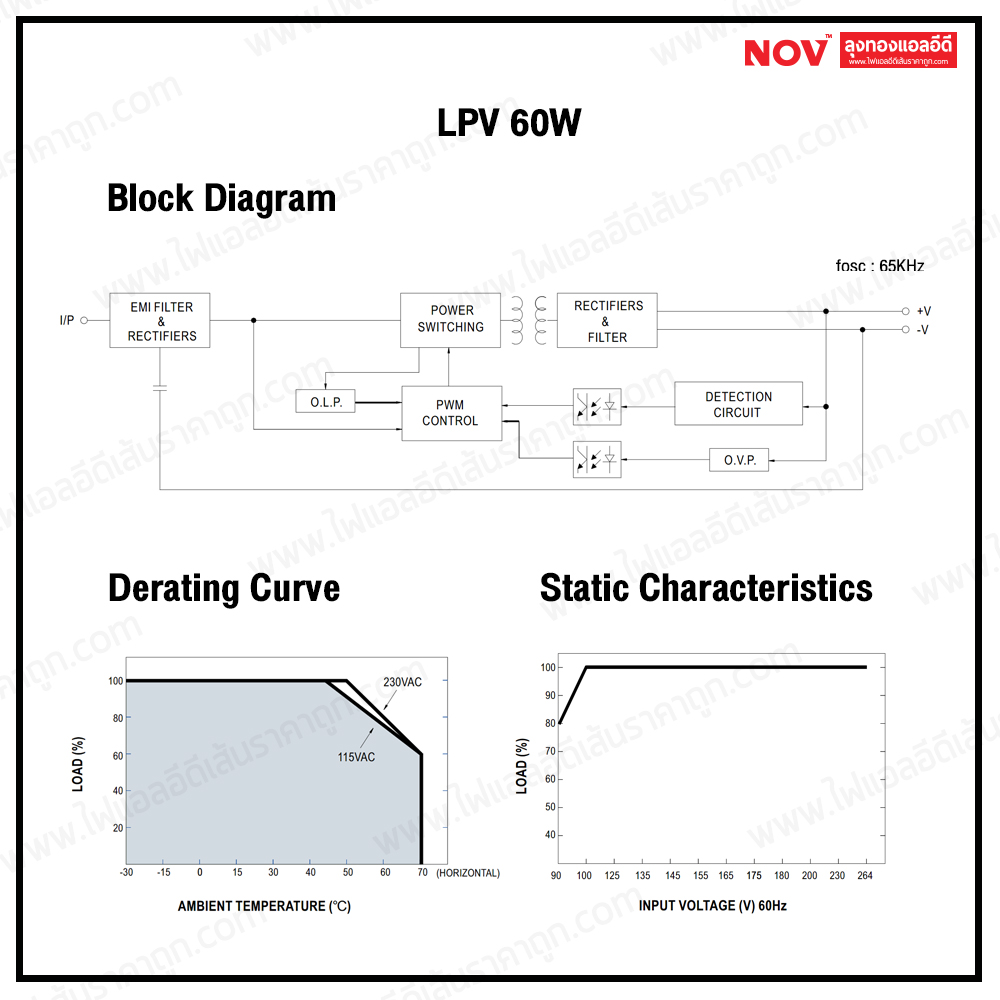

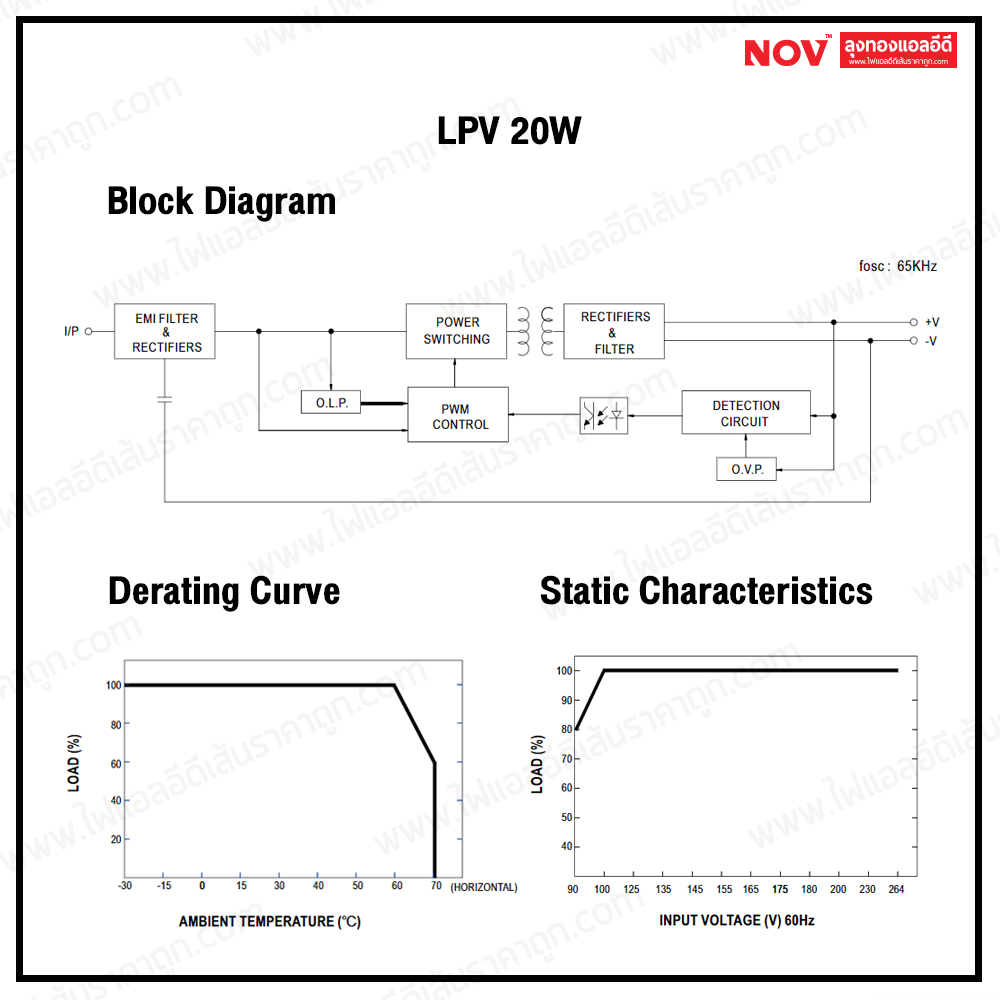

-30~+70°C (Refer to "Derating Curve") |

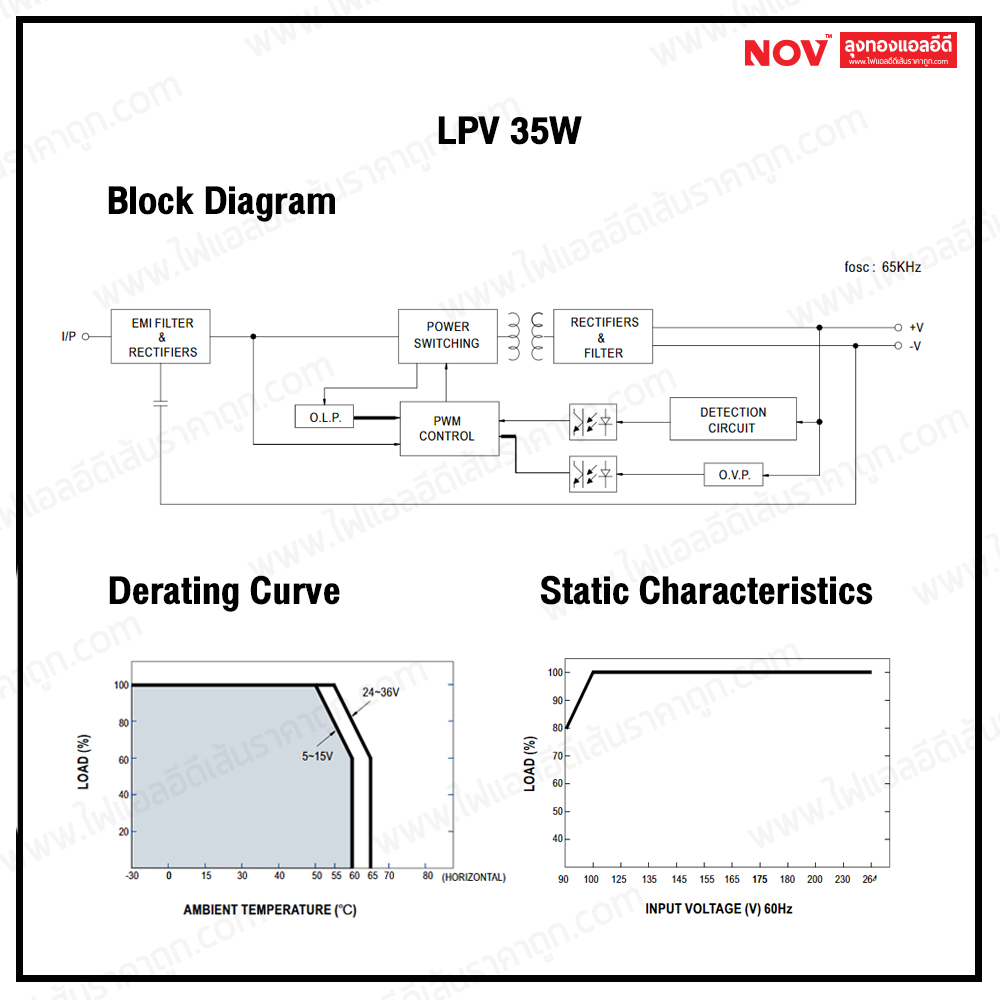

-30~+65°C (Refer to "Derating Curve") |
-30~+70°C (Refer to "Derating Curve") |
-25~+70°C (Refer to "Derating Curve") |

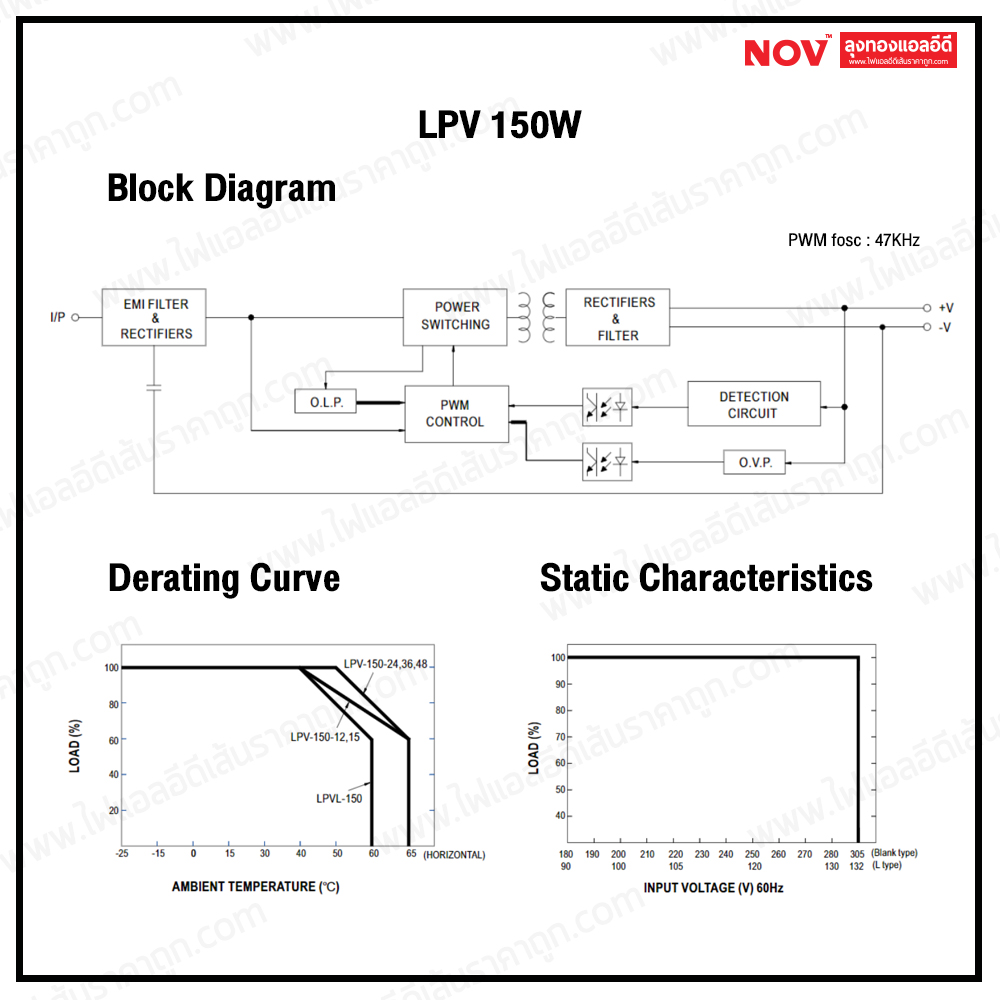

-25~+65°C (Refer to "Derating Curve") |
| WORKING HUMIDITY |
20~90% RH non-condensing |
20~90% RH non-condensing |
20~90% RH non-condensing |
20~90% RH non-condensing |
20~90% RH non-condensing |
| STORAGE TEMP.,HUMIDITY |
-40~+80°C,10~95% RH non-condensing |
-40~+80°C,10~95% RH |
-40~+80°C,10~95% RH |
-40~+80°C,10~95% RH |
-40~+80°C,10~95% RH |
| TEMP.COEFFICIENT |
±0.03%/°C(0~50°C) |
±0.03%/°C(0~50°C) |
±0.03%/°C(0~50°C) |
±0.03%/°C(0~50°C) |
±0 .03%/°C(0 ~ 40°Cfor LPV-150-12,15 and LPVL-150-12,24;0~50°C for LPV-150-24,36,48) |
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
10 ~500Hz,2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
10 ~500Hz,2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
10 ~500Hz,2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
10 ~500Hz,2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
SAFETY &
EMC |
SAFETY STANDARDS |
Ul879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,TUV EN60950-1,IP67 approvedEAC TP TC 004, IP67 approved |
UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(for LPV-35-12,LPV-35-24 only),IP67 approved ;EAC TP TC 004,design refer to TUV EN60950-1 |
UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48),CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(for LPV-60-12,LPV-60-24 only),EAC TP TC 004, IP67, IEC60950-1:2005+A2:2013 approved ; design refer to TUV EN60950-1 |
UL8750,CSA C22.2 No 250.13-12 UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-100-12,LPV-100-24 only),,EAC TP TC 004,IP67 approved. Design refer to EN60950-1 |
UL8750,CSA C22.2 No 250.13-12 UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),,EAC TP TC 004,IP67 approved. Design refer to EN60950-1
UL8750(type”HL”),CSA C22.2 No 250.13-12 UL879,CSA C22.2 No.207-M89,IP67 approved |
| WITHSAND VOLTAGE |
I/P-O/P:3KVAC |
I/P-O/P:3KVAC |
I/P-O/P:3KVAC |
I/P-O/P:3KVAC |
I/P-O/P:3KVAC |
| ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC EMISSION |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3 EAC TP TC 020 |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 (Class A ≤80% load), EN61000-3-3, EAC TP TC 020 |
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2 Class A(≤80load%), EN61000-3-3, EAC TP TC 020
Compliance to FCC part 15 |
| EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A, EAC TP TC 020 |
Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A, EAC TP TC 020
Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level, criteria A |
| OTHERS |
MTBF |
786.5Khrs min. MIL-HDBK-217F (25°C) |
743.5Khrs min. MIL-HDBK-217F (25°C) |
732Khrs min. MIL-HDBK-217F (25°C) |
703Khrs min. MIL-HDBK-217F (25°C) |
703Khrs min. MIL-HDBK-217F(25°C) |

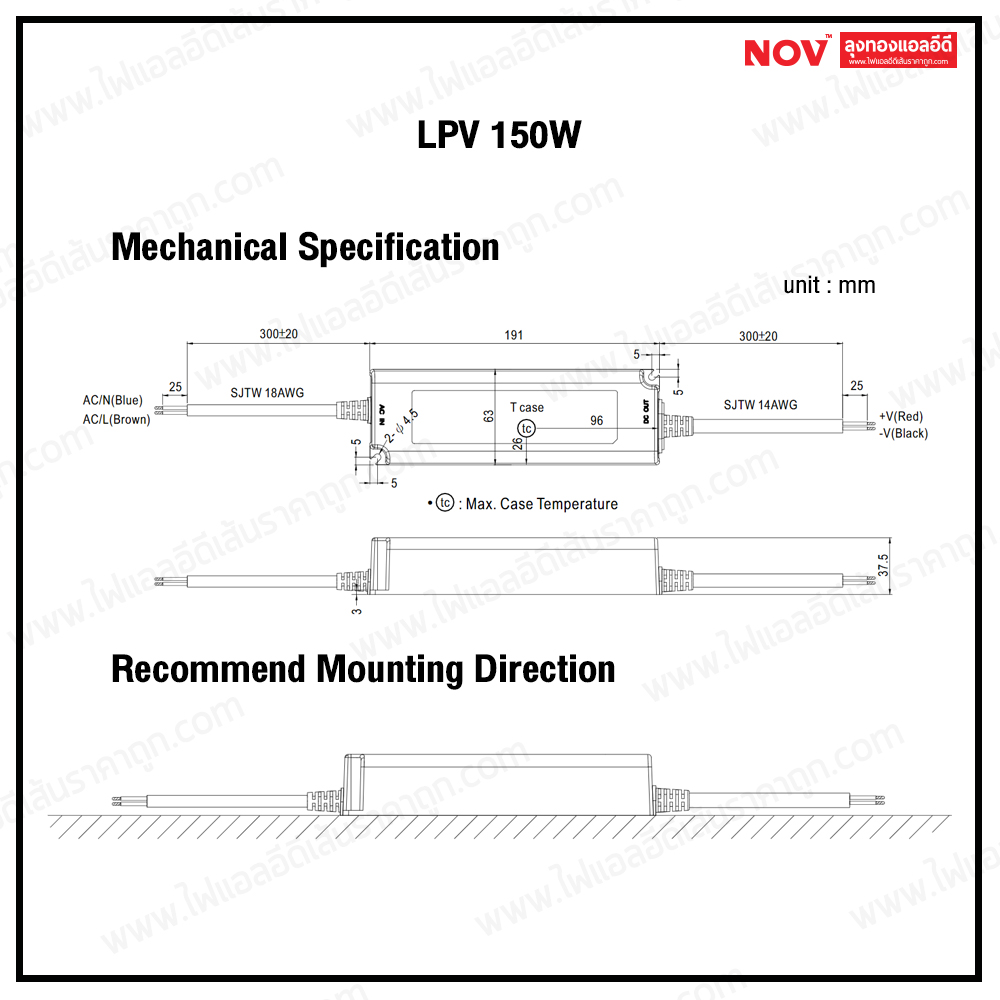

| DIMENSION |

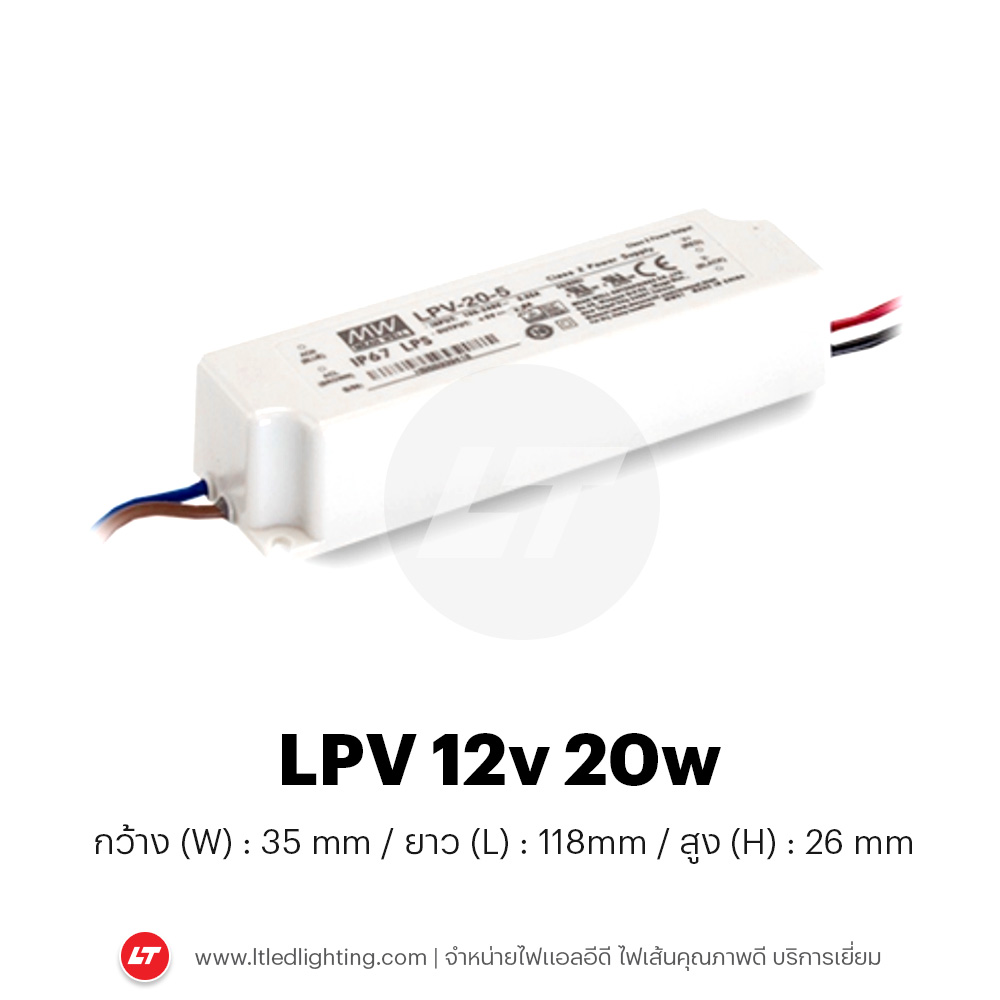

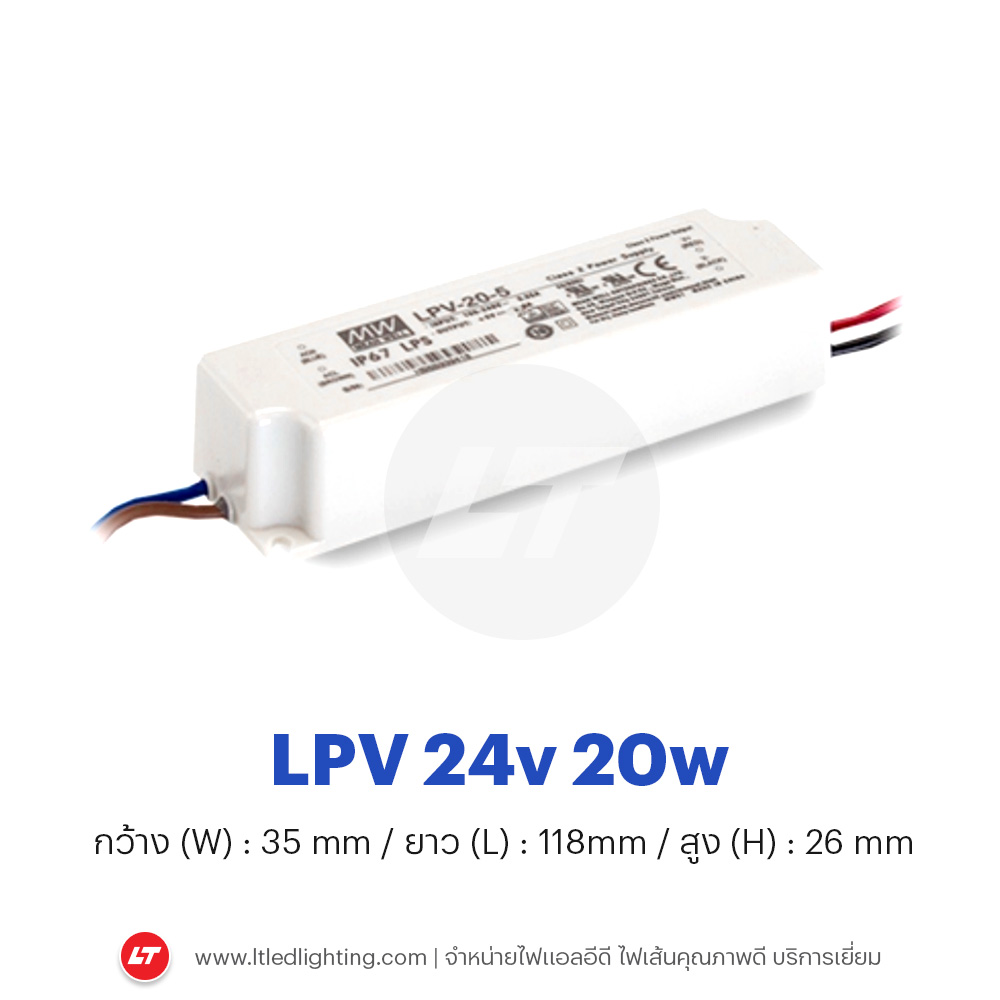

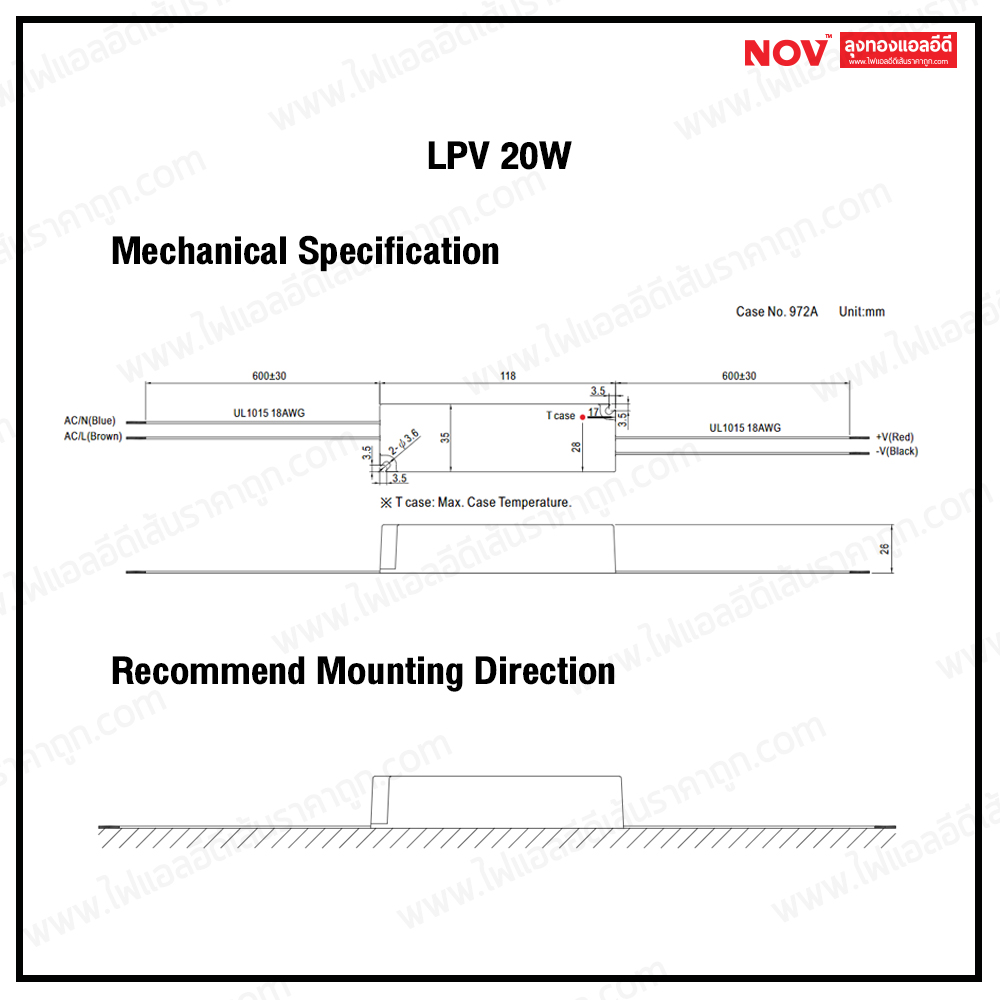

118*35*26mm(L*W*H) |

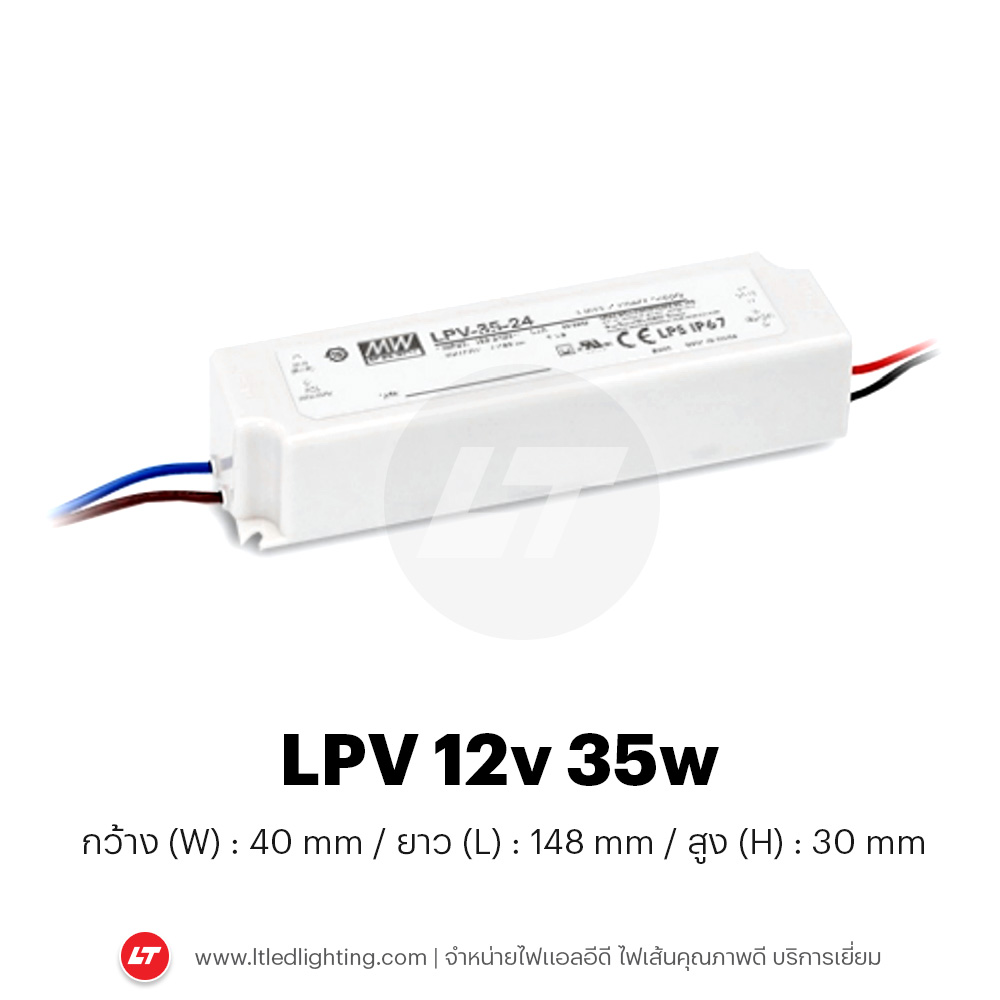

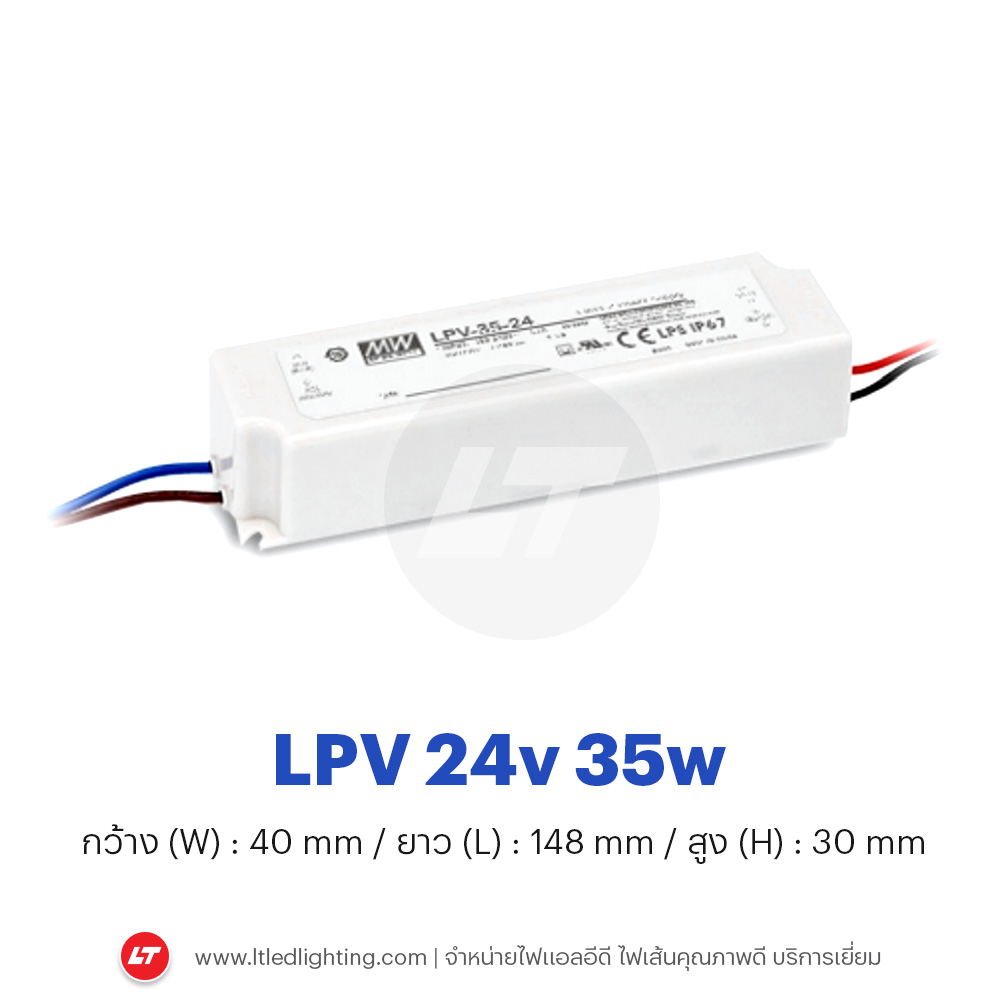

148*40*30mm (L*W*H) |

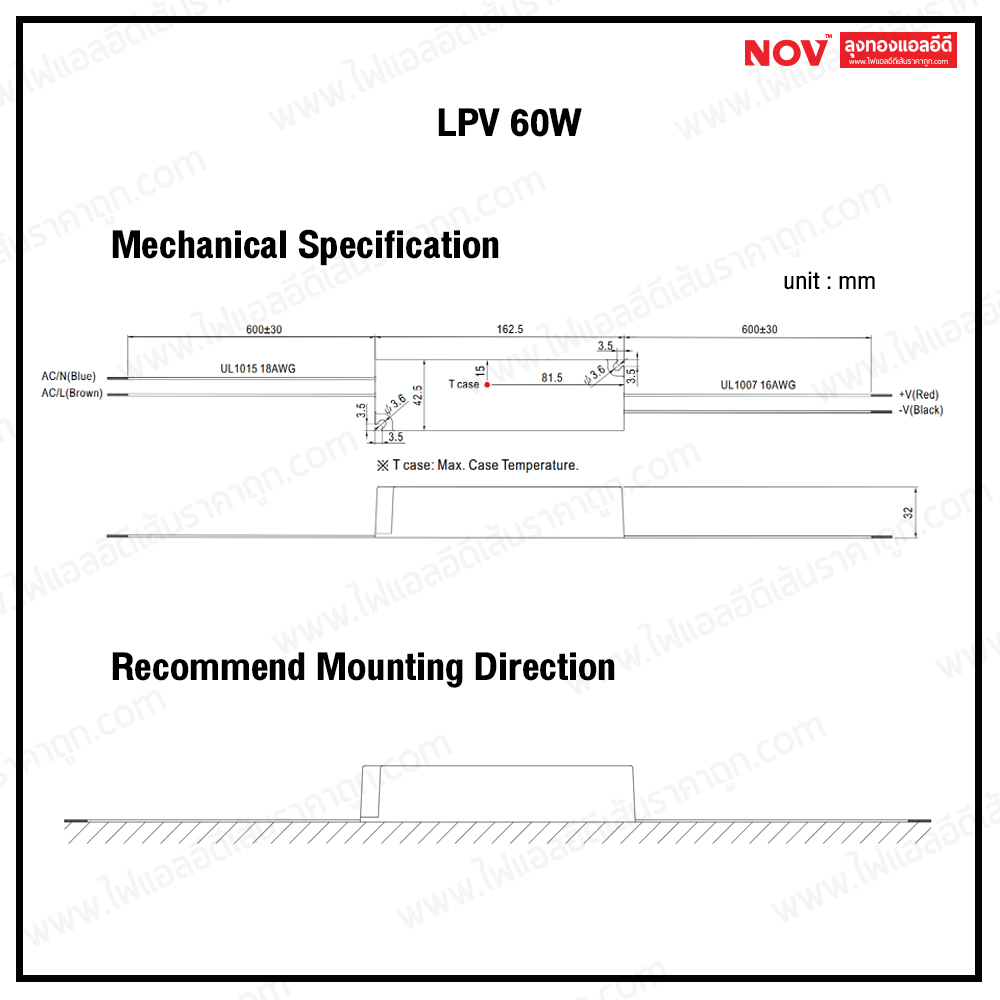

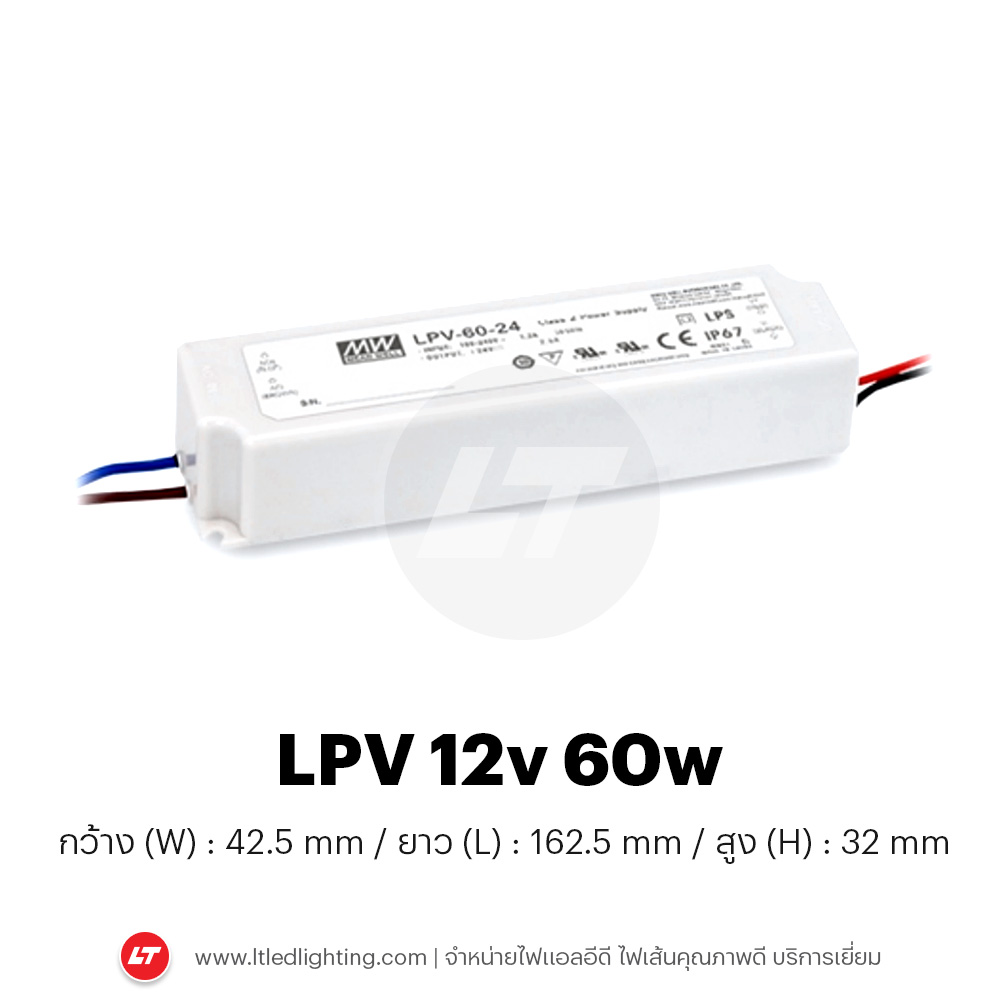

162.5*42.5*32mm (L*W*H) |

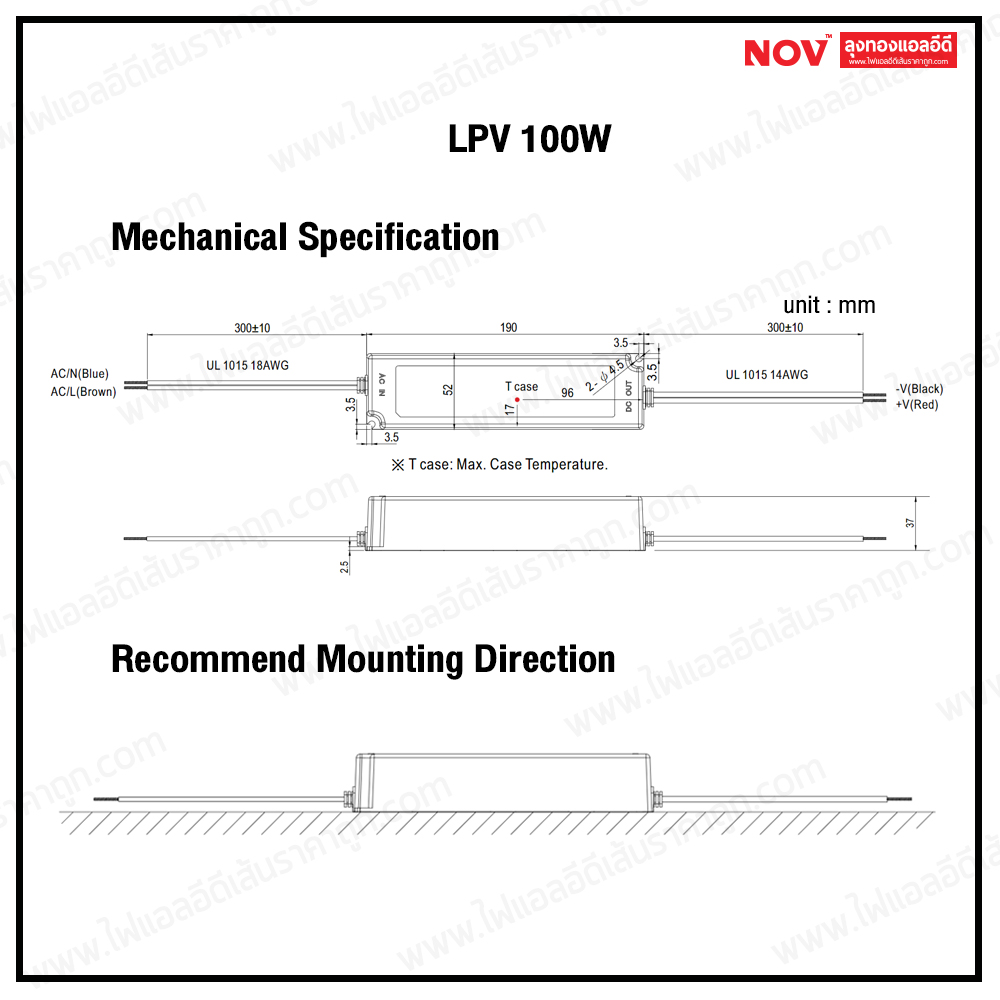

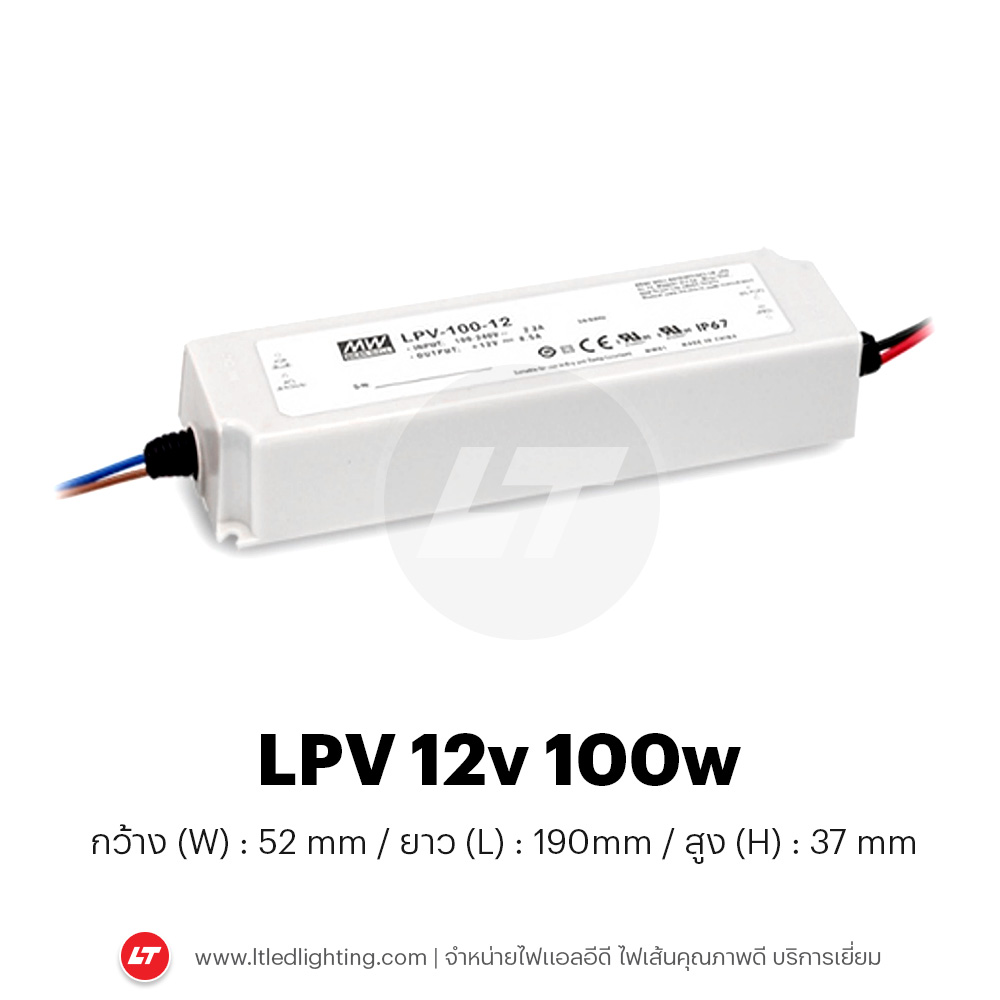

190*52*37mm (L*W*H) |

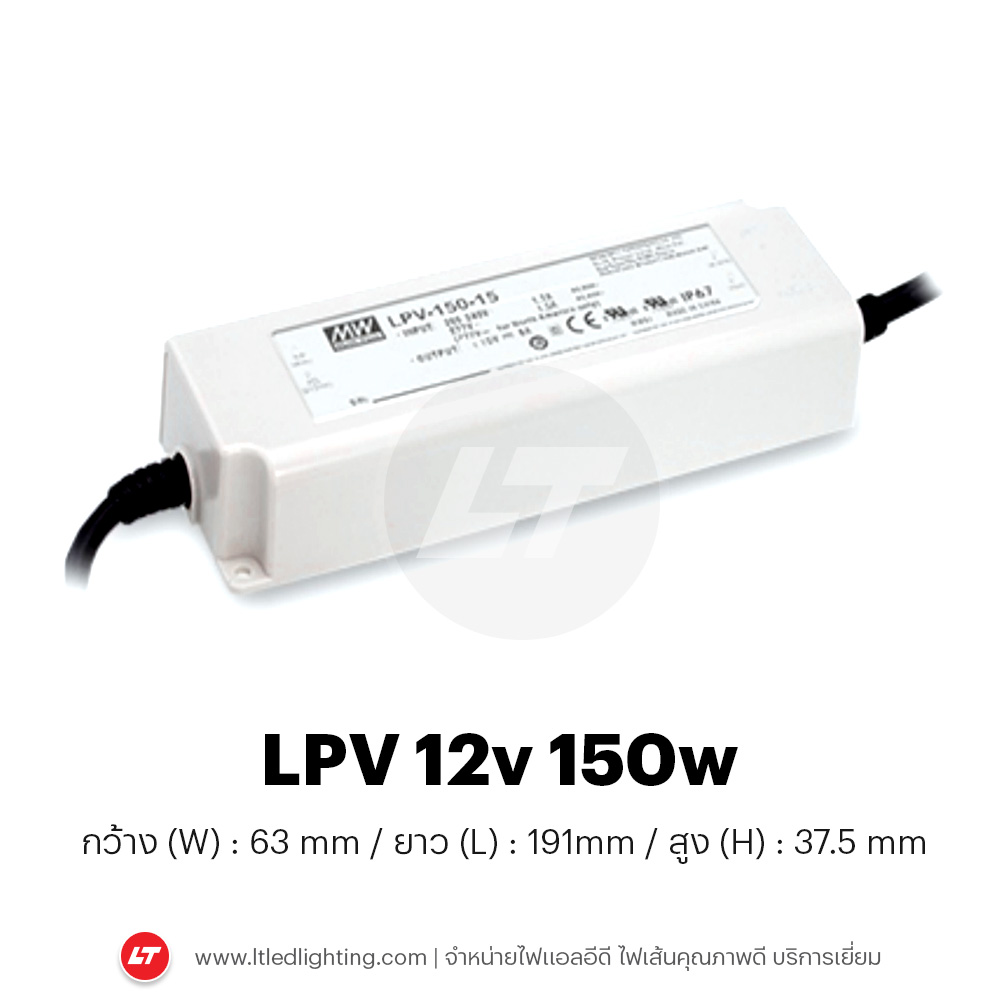

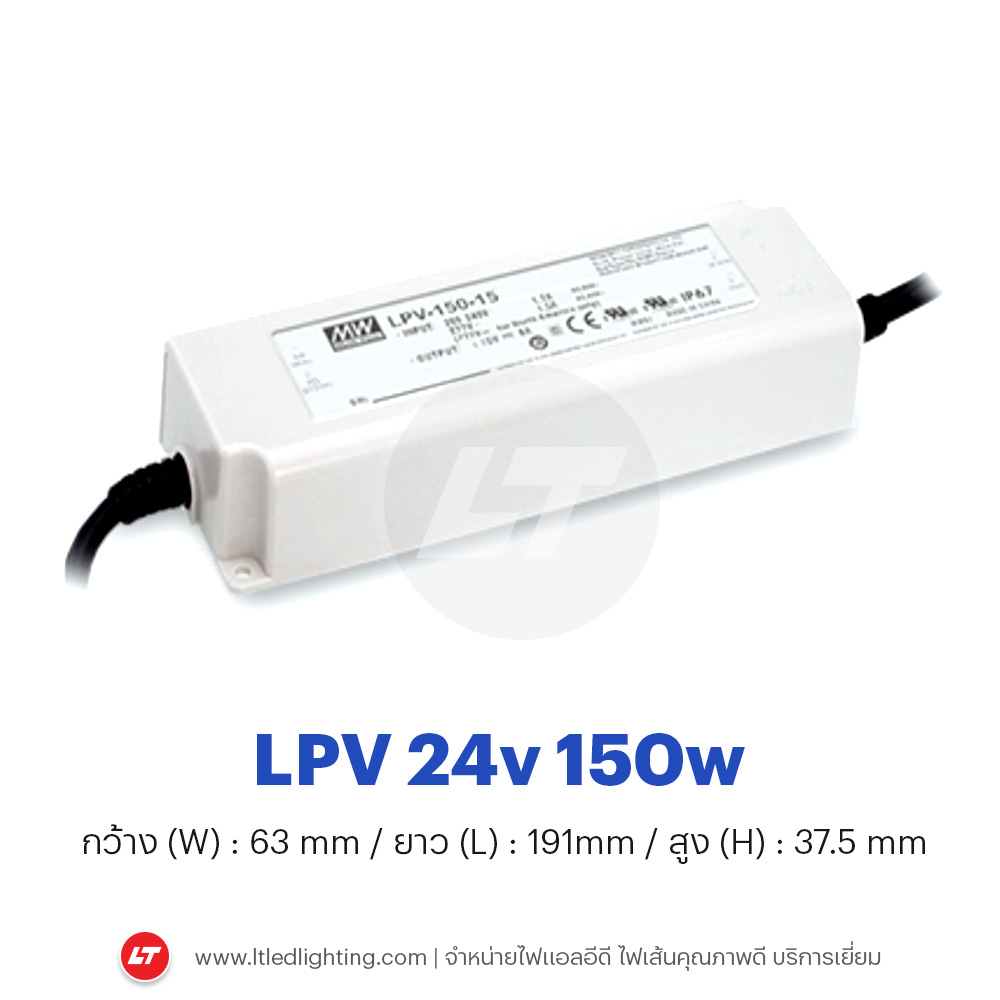

191*63*37.5mm (L*W*H) |
| PACKING |
0.22Kg; 60pcs/14.2Kg/0.62CUFT |
0.34Kg; 40pcs/14.6Kg/0.63CUFT |
0.4Kg; 32pcs/13.8Kg/0.56CUFT |
0.63Kg;20pcs/13.6Kg/0.55CUFT |
LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT;
LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT |
